 Posted - 11/04/2004 : 1:44:34 PM
|
Since I read posts from people in Europe who are looking for the right power adapter, I will share my experience with the one I have just bought, and which works very fine (just tried for 1 hour so far, but still...)
It's a variable power adapter, made by a company called "Lyvia".
I don't know if it's available outside Italy (I doubt it).
I paid it 7.10 Euro, in a very generic electric goods shop.
Here's the specs from the box:
INPUT: 230V - 50Hz AC
POWER: 23.5W
OUTPUT: from 1V to 12V DC
CURRENT: 1000mA 12VA (max)
You can also switch the polarity and comes with 6 different connectors.
Here are some pictures:

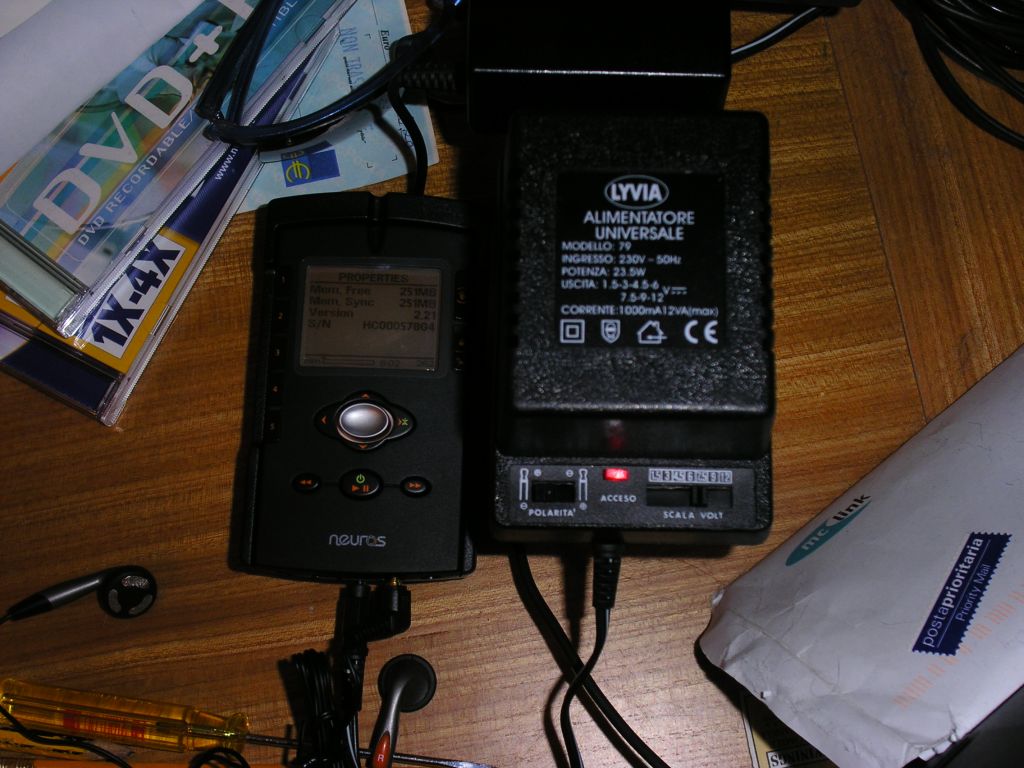

http://img122.exs.cx/img122/7905/charge_rez.jpg :The adapter charging

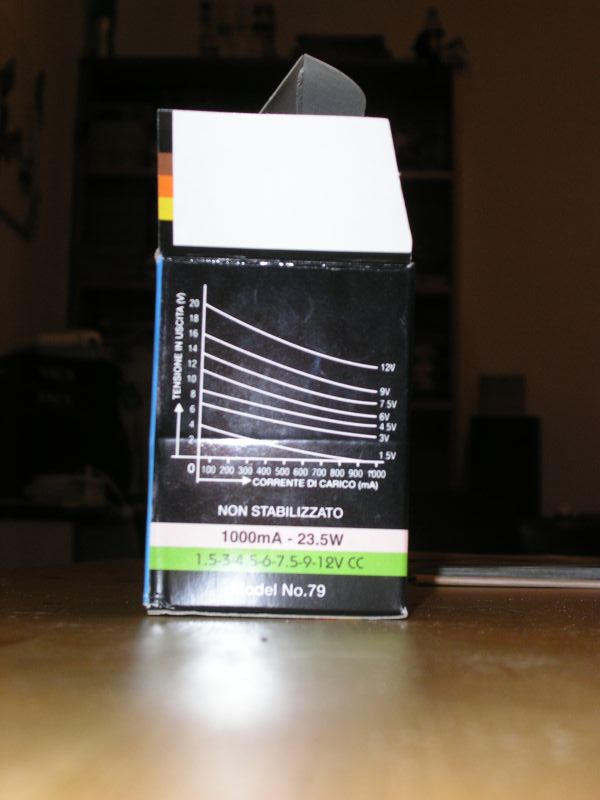

http://img122.exs.cx/img122/6830/box_side_rez.jpg :Side of the box (voltage output graph)
http://img122.exs.cx/img122/4476/box_price_rez.jpg :The box

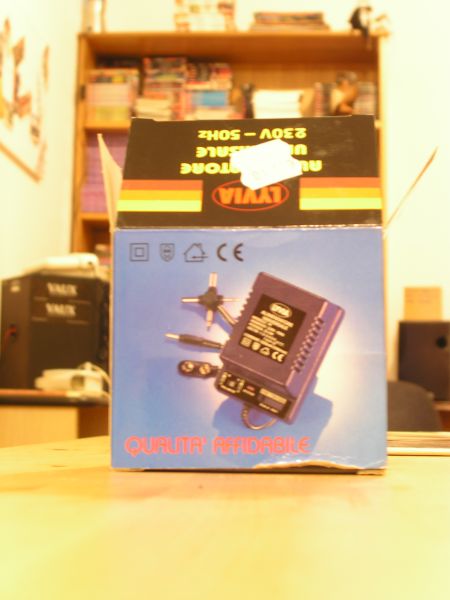

http://img122.exs.cx/img122/4452/box_front_rez.jpg :The box again
From what I understand looking at the graph in the second picture, since the unit seems to work at 800mA, to give it the right voltage you should set the voltage switch to 7.5V .
At least I did this, and it seems to work and charge fine so far.
|
Your quick response to this post: (1 total votes)
I agree (100%)
I disagree (0%)
|
|
|
mullacy(at)gmail.com
Just Posting
1 Posts |
Posted - 11/15/2004 : 01:50:40 AM
|
Thanks, that's exactly the info I need ... I live in New Zealand and am currently deciding whether to buy a Neuros or not, but seeing this post on how to power the thing makes my decision a lot easier :).
Well, I think I found one - anyone wanna check it out and see if it won't fry my (soon to be ordered  ) Neuros?
http://www.dse.co.nz/cgi-bin/dse.storefront/4198604b1015cdf2273fc0a87f99071a/Product/View/M9917
Selectable output voltage up to 12V; selectable current including .8 A (800 ma right?); and an input voltage ranging from 90-264V @ 47-63khz... this is what I need, right?
That site is a medium-sized electronics shop. If they have it chances are most electronics stores in medium sized cities around the world should too. |
Edited by - mullacy(at)gmail.com on 11/15/2004 02:04:53 AM |
Your quick response to this post: (1 total votes)
I agree (100%)
I disagree (0%) |
 |
|
|
Gar Bage
Posting Profoundly
108 Posts |
Posted - 11/15/2004 : 02:12:47 AM
|
Get a better charger.
That one is innefficient, since it provides low amperage at the voltages needed for charging. It may damage your batteries in middle-long term.
Also it does not stabilize the voltage, so peaks may appear. That may damage the batts too.
Get one who does at least 800mA for 9V (DC) from 240V (AC). The more amperage the better.
-- Those who would give up Essential Liberty to purchase a little Temporary Safety, deserve neither Liberty nor Safety. (Ben Franklin) |
Your quick response to this post: (0 total votes)
I agree (0%)
I disagree (0%) |
|
|
|
nerochiaro
Likes to Post
23 Posts |
Posted - 11/15/2004 : 02:49:47 AM
|
quote:
Originally posted by Gar Bage
Get a better charger.
Are you referring to mullacy's adapter or mine ? |
Your quick response to this post: (0 total votes)
I agree (0%)
I disagree (0%) |
|
|
|
Gar Bage
Posting Profoundly
108 Posts |
Posted - 11/15/2004 : 08:45:14 AM
|
quote:
Originally posted by nerochiaro
Are you referring to mullacy's adapter or mine ?
Yours.
-- Those who would give up Essential Liberty to purchase a little Temporary Safety, deserve neither Liberty nor Safety. (Ben Franklin) |
Your quick response to this post: (0 total votes)
I agree (0%)
I disagree (0%) |
|
|
|
remko
Just Posting
3 Posts |
Posted - 02/12/2005 : 2:27:40 PM
|
quote:
Originally posted by Gar Bage
That one is innefficient, since it provides low amperage at the voltages needed for charging. It may damage your batteries in middle-long term.
Also it does not stabilize the voltage, so peaks may appear. That may damage the batts too.
Get one who does at least 800mA for 9V (DC) from 240V (AC). The more amperage the better.
Hmmm... wondering. Found a placard on the backpack which say's 400mA max. Doesn't make sense. |
Your quick response to this post: (0 total votes)
I agree (0%)
I disagree (0%) |
|
|
|
cocacola1010
Just Posting
4 Posts |
Posted - 05/01/2005 : 1:59:48 PM
|
Most chargers current drops as voltage increases, some will say 1000mA max, but this is only at 1.5V....be careful, read the instructions - even if you don't follow them...!!!
|
Your quick response to this post: (0 total votes)
I agree (0%)
I disagree (0%) |
|
|
|
proton
Likes to Post
10 Posts |
Posted - 05/03/2005 : 2:23:54 PM
|
Well, I haven't got my Neuros yet, but I was thinking of using a charger I had lying around that supposedly is 12V 500mA. Does that mean I can't use it?
Also, shouldn't voltage be the important thing here? |
Your quick response to this post: (0 total votes)
I agree (0%)
I disagree (0%) |
|
|
|
Ex-Navy
Posting Profoundly
208 Posts |
Posted - 03/17/2006 : 2:01:06 PM
|
The unit will draw up to 1 amp at 5volts dc.
It is a ratio, if the unit draws amperage, voltage drops.
A 5 volt regulated dc with 1 amp output will work perfect.
+ at center pin.
The power pack II works great
quote:
Originally posted by proton
Well, I haven't got my Neuros yet, but I was thinking of using a charger I had lying around that supposedly is 12V 500mA. Does that mean I can't use it?
Also, shouldn't voltage be the important thing here?
Ex-Navy |
Your quick response to this post: (0 total votes)
I agree (0%)
I disagree (0%) |
|
|
|
Derek
Moderator
500 Posts |
Posted - 03/21/2006 : 12:03:06 AM
|
its good to see you posting again GarBage!
When I was a kid my mom used to tell me that curiosity killed the cat...What she forgot to tell me was that it also discovered the cat, invented the lightbulb, and forged the Neuros |
